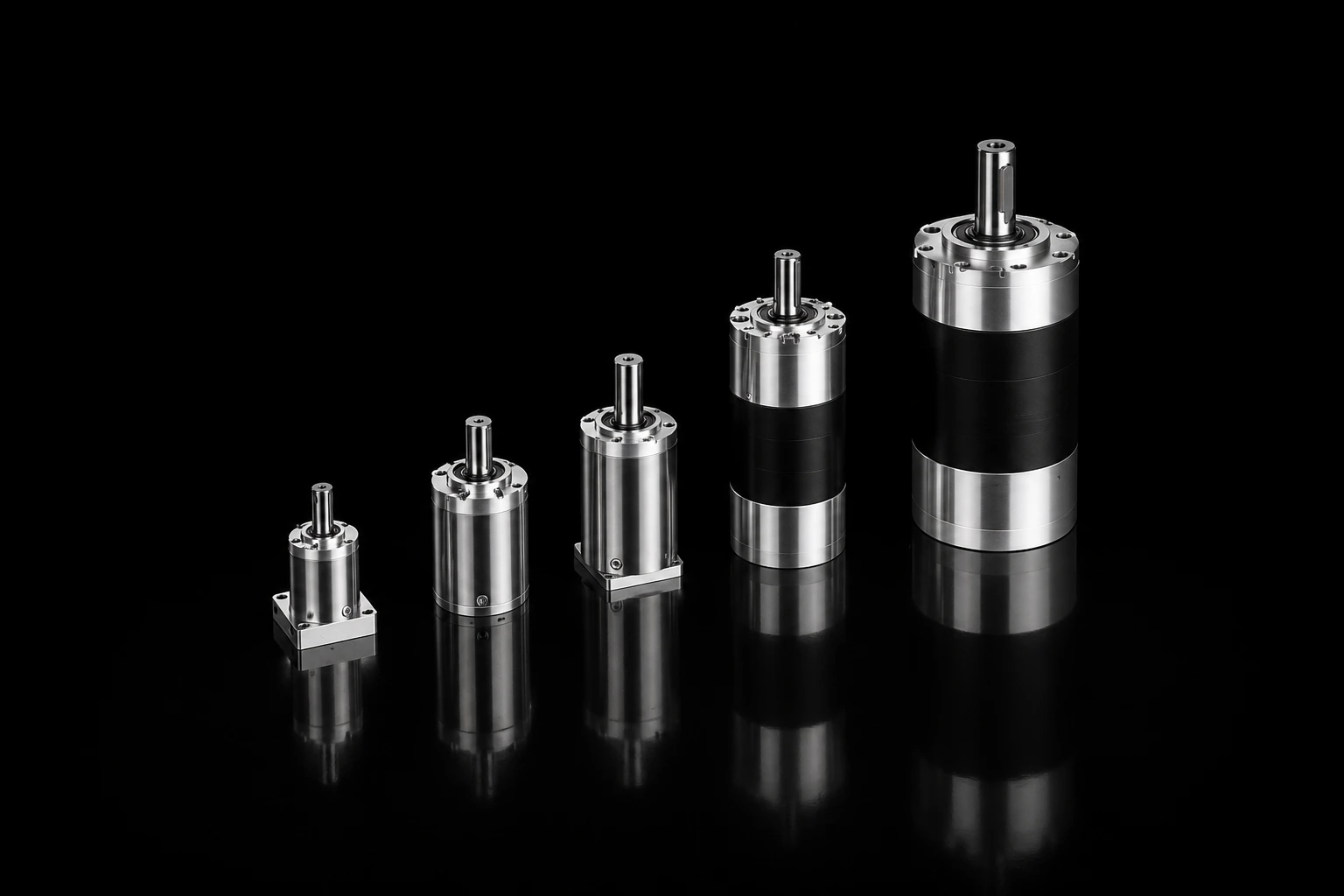

Standard Planetengetriebe

  • Baugröße Ø22 … 120mm
  • Dauerdrehmomente bis 300Nm
  • Metall und Kunststoffausführung
  • Sonderausführungen möglich
Standard Planetengetriebe

Übersicht

Serie
Durchmesser [mm]
Untersetzungsbereich
Dauerdrehmoment max. [Nm]
3D CAD
VT
P22
22
3,7:1 ... 307,6:1
0,8
Step File Icon
PK22
22
3,7:1 ... 307,6:1
0,6
Step File Icon
PH26
26
4,3:1 ... 181,1:1
3
Step File Icon
P32
32
3,7:1 ... 307,6:1
4,5
Step File Icon
PK32
32
3,7:1 ... 307,6:1
2
Step File Icon
PH32
32
3,7:1 ... 307,6:1
6
Step File Icon
P42
42
3,7:1 ... 307,6:1
15
Step File Icon
PK42
42
3,7:1 ... 307,6:1
4
Step File Icon
PH42
42
3,9:1 ... 216,0:1
20
Step File Icon
P52
52
3,7:1 ... 307,6:1
25
Step File Icon
PK52
52
3,7:1 ... 307,6:1
10
Step File Icon
P62
62
3,7:1 ... 307,6:1
50
Step File Icon
PH62
62
4,0:1 ... 256,5:1
50
Step File Icon
P72
72
3,7:1 ... 307,6:1
84
Step File Icon
P81
81
3,7:1 ... 307,6:1
120
Step File Icon
PH85
85
3,8:1 ... 182,0:1
150
Step File Icon
P105
105
3,7:1 ... 307,6:1
195
Step File Icon
P120
120
3,7:1 ... 307,6:1
300
Step File Icon

Baureihe P ... Standardausführung, Stahlzahnräder
Baureihe PK ... Kunststoffausführung
Baureihe PH ... Ausführung für Kleinserien
